HAND TOOLS - VICESIn Stock
PRECISION TOOLMAKER STEEL VICES (Screwless Type)
Product Overview
Precision toolmaker steel vices with screwless type mechanism for rapid positioning.
Key Features
Manufactured from tool steel hardened 55-60 HRC
High precision ground surfaces
Rapid positioning notches with hex key locking
V Grooves in sliding jaw (horizontal and vertical) for round jobs
Jaw pressure forward and downward for repeatable positioning
Maximum holding power
Technical Specifications
Detailed technical data and measurements

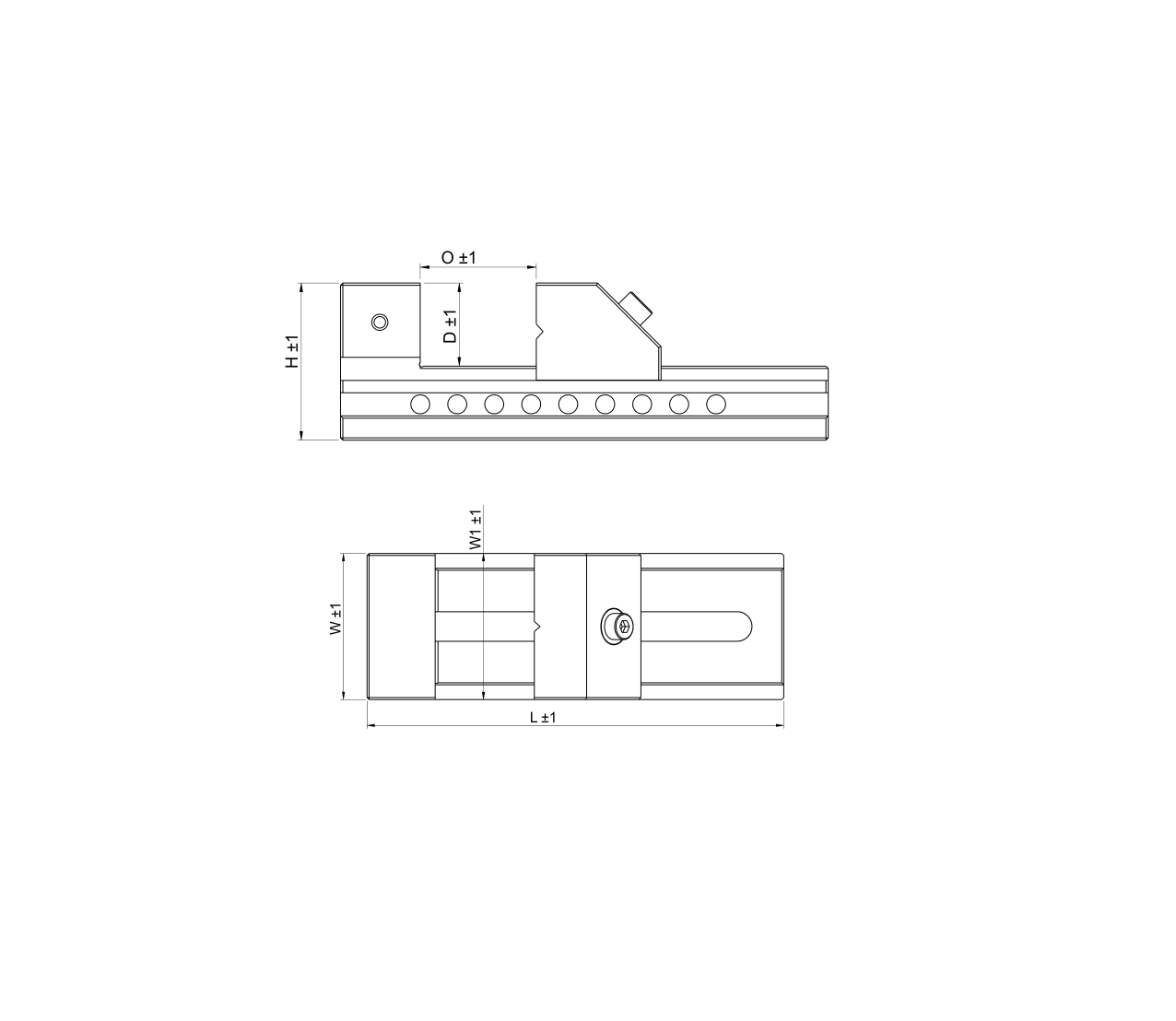

Article No. | Length(mm) | Width(mm) | Height(mm) | Jaw Width(mm) | Jaw Opening(mm) | Jaw Depth(mm) | Net Weight(Kg) |
|---|---|---|---|---|---|---|---|
| TNXSVSL-85 | 65 | 25 | 30 | 25 | 20 | 10 | 0.25 |
| TNXSVSL-86 | 100 | 25 | 40 | 25 | 50 | 20 | 0.4 |
| TNXSVSL-87 | 148 | 38 | 40 | 38 | 75 | 20 | 0.9 |
| TNXSVSL-88 | 160 | 50 | 50 | 50 | 80 | 25 | 1.6 |
| TNXSVSL-89 | 177 | 75 | 64 | 75 | 100 | 35 | 3.5 |
| TNXSVSL-90 | 228 | 100 | 80 | 100 | 125 | 40 | 7.6 |
