MEASURING TOOLSIn Stock

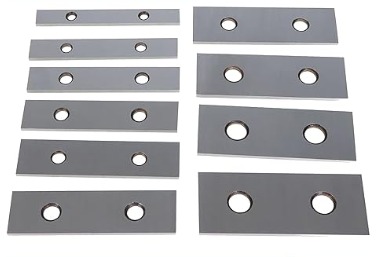

PRECISION STEEL PARALLEL
Product Overview
Made of high grade alloy steel, hardened to 58-62 HRC and ground on all four sides in matched pairs. They are indispensable for setup on drill presses, shapers, grinding and milling machines as well as used for inspection and layout work.
Key Features
Made of high grade alloy steel
Hardened to 58-62 HRC
Ground on all four sides in matched pairs
Indispensable for setup on drill presses, shapers, grinding and milling machines
Used for inspection and layout work
Available in two lengths: 3.3/4”/95mm and 6”/150mm
Packed in fitted beautiful wooden carry case
Total parallelism over the 6”/150mm length is .0001” (0.002mm)
Technical Specifications
Detailed technical data and measurements
Article No. | Thickness mm(mm) | Width mm(mm) | Length mm(mm) | Net Weight Kgs.(Kg) |
|---|---|---|---|---|
| TNXSP-13 | 8 | 10 | 100 | 0.13 |
| TNXSP-13 | 8 | 15 | 100 | 0.19 |
| TNXSP-13 | 8 | 20 | 100 | 0.25 |
| TNXSP-13 | 8 | 25 | 100 | 0.31 |
| TNXSP-13 | 8 | 30 | 100 | 0.38 |
| TNXSP-13 | 8 | 35 | 100 | 0.44 |
| TNXSP-13 | 8 | 40 | 100 | 0.50 |
| TNXSP-14 | 3 | 10 | 95 | 0.05 |
| TNXSP-14 | 3 | 12 | 95 | 0.06 |
| TNXSP-14 | 4 | 14 | 95 | 0.09 |
| TNXSP-14 | 6 | 18 | 95 | 0.16 |
| TNXSP-14 | 6 | 24 | 95 | 0.22 |
| TNXSP-14 | 8 | 30 | 95 | 0.36 |
| TNXSP-14 | 8 | 38 | 95 | 0.45 |
| TNXSP-15 | 3 | 10 | 95 | 0.05 |
| TNXSP-15 | 3 | 10 | 150 | 0.07 |
| TNXSP-15 | 4 | 14 | 150 | 0.13 |
| TNXSP-15 | 6 | 18 | 150 | 0.25 |
| TNXSP-15 | 6 | 24 | 150 | 0.34 |
| TNXSP-15 | 8 | 30 | 150 | 0.56 |
| TNXSP-15 | 8 | 38 | 150 | 0.72 |
| TNXSP-16 | 3 | 10 | 95 | 0.05 |
| TNXSP-16 | 8.5 | 10 | 150 | 0.20 |
| TNXSP-16 | 8.5 | 16 | 150 | 0.32 |
| TNXSP-16 | 8.5 | 20 | 150 | 0.40 |
| TNXSP-16 | 8.5 | 24 | 150 | 0.50 |
| TNXSP-16 | 8.5 | 30 | 150 | 0.60 |
| TNXSP-16 | 8.5 | 32 | 150 | 0.65 |
| TNXSP-16 | 8.5 | 36 | 150 | 0.72 |
| TNXSP-16 | 8.5 | 40 | 150 | 0.80 |
| TNXSP-16 | 8.5 | 44 | 150 | 0.90 |
| TNXSP-17 | 10 | 14 | 150 | 0.33 |
| TNXSP-17 | 10 | 16 | 150 | 0.38 |
| TNXSP-17 | 10 | 18 | 150 | 0.42 |
| TNXSP-17 | 10 | 20 | 150 | 0.47 |
| TNXSP-17 | 10 | 22 | 150 | 0.52 |
| TNXSP-17 | 10 | 24 | 150 | 0.57 |
| TNXSP-17 | 10 | 26 | 150 | 0.61 |
| TNXSP-17 | 10 | 28 | 150 | 0.66 |
| TNXSP-17 | 10 | 30 | 150 | 0.70 |
| TNXSP-17 | 10 | 32 | 150 | 0.75 |
| TNXSP-17 | 10 | 35 | 150 | 0.82 |
| TNXSP-17 | 10 | 40 | 150 | 0.95 |
| TNXSP-17 | 10 | 45 | 150 | 1.06 |
| TNXSP-17 | 10 | 50 | 150 | 1.18 |
