HAND TOOLS - V BLOCKSIn Stock

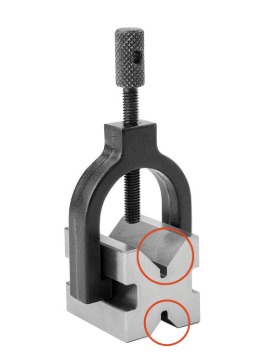

NON-MAGNETIC V BLOCKS WITH CLAMPS
Product Overview
Non-magnetic vee blocks with clamps for general layout work and holding round workpieces.
Key Features
Useful for general layout work and holding round workpieces
Ideal for drilling, machining and grinding operations
Supplied in matched and numbered pairs
Manufactured from case hardened steel, precision ground
Includes pair of clamps with steel screws
Hardened to 55-60 HRC
Squareness and parallelism within 0.001″ (0.025mm)
Two grooves on each side for small or large work clamping
Technical Specifications
Detailed technical data and measurements
Article No. | Length(mm) | Width(mm) | Height(mm) | Width Small VEE(mm) | Width Large VEE(mm) | Clamping Capacity(mm) | Net Weight(Kg) |
|---|---|---|---|---|---|---|---|
| TNXVB-21 | 40 | 32 | 32 | 11 | 20 | 25 | 0.8 |
| TNXVB-22 | 50 | 30 | 30 | 11 | 20 | 25 | 0.7 |
| TNXVB-23 | 50 | 38 | 38 | 13 | 28 | 38 | 1.3 |
| TNXVB-24 | 63 | 50 | 50 | 16 | 38 | 50 | 2 |
| TNXVB-25 | 80 | 63 | 63 | 22 | 45 | 50 | 4 |
| TNXVB-26 | 100 | 75 | 75 | 25 | 55 | 75 | 7 |
| TNXVB-27 | 150 | 100 | 100 | 35 | 75 | 100 | 12 |
